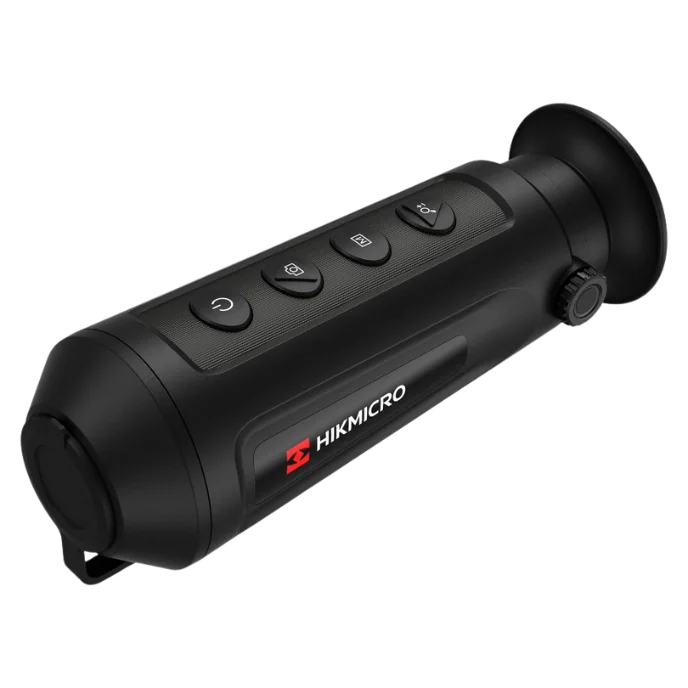

LYNX S
Compact Size. Easy to Carry
Large OLED Display for More Immersive Observation
High resolution 0.32” 800 x 600 OLED is capable of lower power consumption, wider viewing angle, and richer color.
High Frame Rate, Smoother Detailed Images
LYNX S series features filming at 50Hz. This refers to every image being enhanced with a higher dynamic range and effectively reducing eye strain when observing outdoors for a long time.

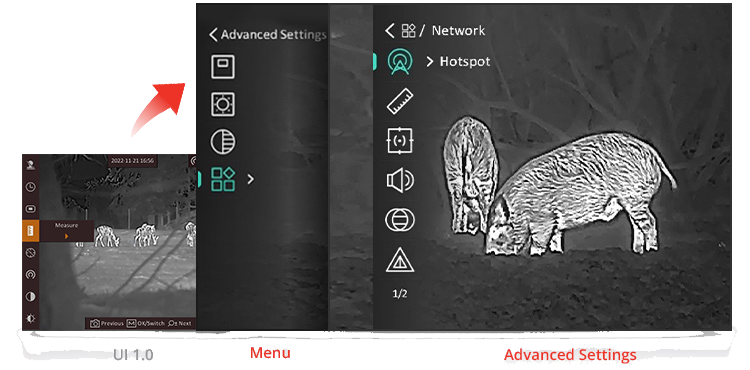

Convenient Brand New UI Design
The new UI design enhances the operation experience, quickly bringing up frequently used functions and not missing a single opportunity to spot your target.
Compact Size, Easy to Carry
Lightweight design of 310g/0.68 lb only.
Long Detection Range Breaks Through All Camouflage
With the advanced imaging detector and lens, the detection range of a 1.7 m target can reach up to 1200m.
More Advantages
Standby Mode
Smart Range Measurement
4 Color Palettes
Large Digital Zoom
SPECIFICATIONS
PRODUCT MODEL
*Check the product for comparison
LC06S
LE10S
LE15S
Image Sensor
VOx Uncooled Focal Plane Arrays
VOx Uncooled Focal Plane Arrays
VOx Uncooled Focal Plane Arrays
Max. Resolution
160 × 120
256 × 192
256 × 192
Frame Rate
50Hz
50Hz
50Hz
Pixel Interval
17μm
12 μm
12 μm
Response Waveband
8μm to 14μm
8μm to 14μm
8μm to 14μm
NETD
Less than 35 mK (@25°C),F#=1.1
Less than 35 mK (@25°C),F#=1.1
Less than 35 mK (@25°C),F#=1.1
Lens (Focal Length)
6.2mm, f1.1
9.7mm, f1.0
15mm, f1.0
Detection Range
250 m
500m
750m
Focus Mode
Focus Free
Focus Free
Focus Free
Field of View(H × V), Degrees / m @100m
24.7° × 18.7° / 43.8m × 32.9m
18.0° × 13.6° / 31.7m × 23.8m
11.7° × 8.8° / 20.5 m × 15.4 m
Min. Focusing Distance
1m
4m
10m
Magnification
1.0× - 4.0× (4×)
1.5x-12.0x(8x)
2.2x-17.6x(8x)
Video
LYNX S - INTRODUCTION
NOVEMBER, 2023
LYNX S - UNBOXING
NOVEMBER, 2023
