FALCON
All goals in sight
Ultra Clear Image. Impressive Detail Recognition
High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background is with minimal temperature difference. Besides, self-developed high TCR vanadium oxide thin film material greatly improves sensitivity. The smallest details of objects and backgrounds can be identified clearly.

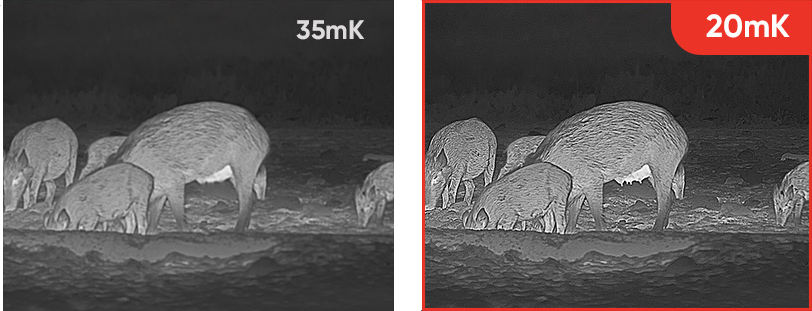

1. Extremely high thermal sensitivity, NETD<20mK
High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background is with minimal temperature difference. Besides, self-developed high TCR vanadium oxide thin film material greatly improves sensitivity. The smallest details of objects and backgrounds can be identified clearly.

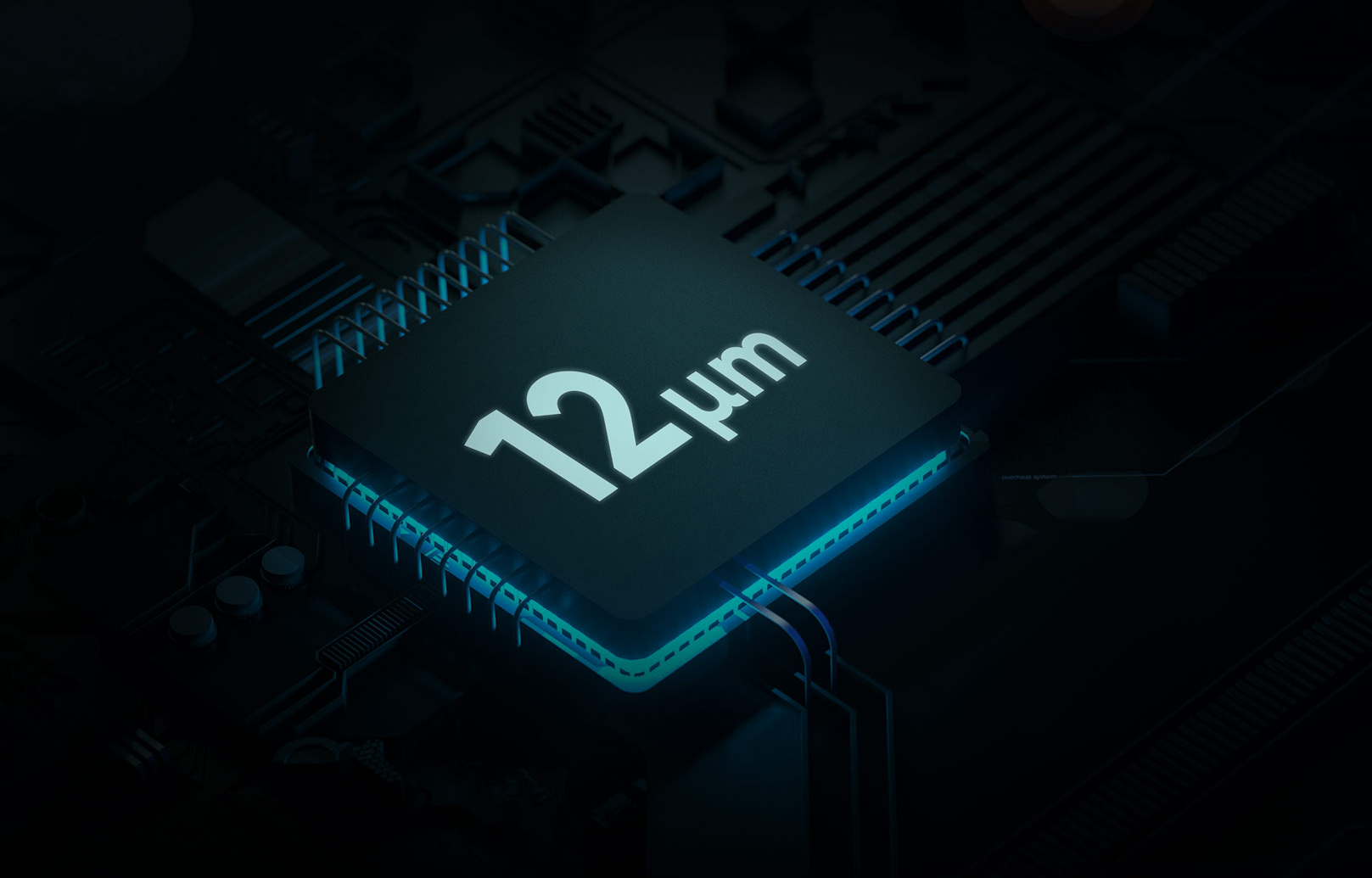

2. High definition thermal detector, up to 640x512 @12μm
Equipped with 12μm high-end thermal detector and up to 640x512 pixel resolution offer an excellent temperature resolution to ensure the thermal image significantly sharp and richly contrasted.

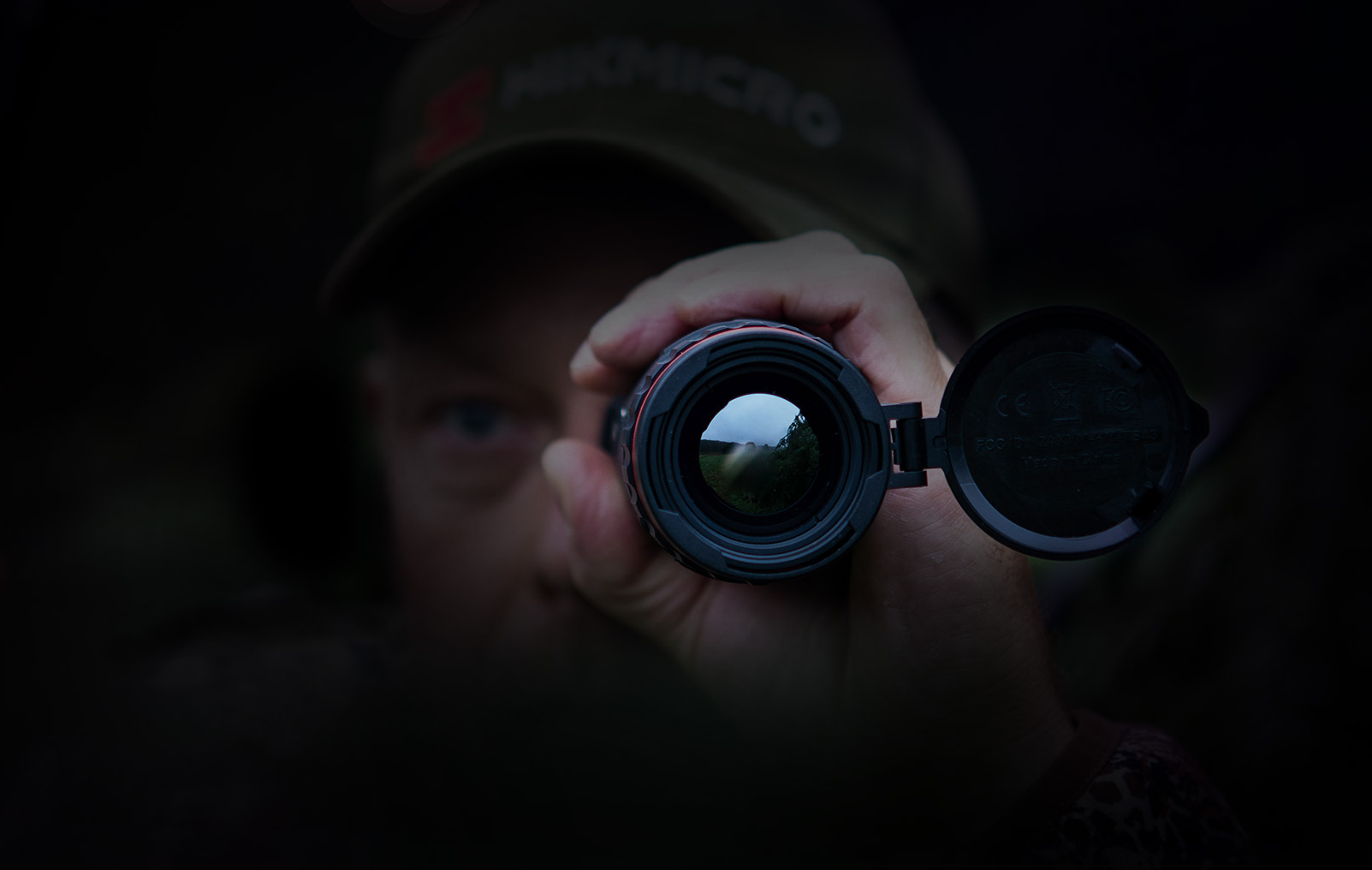

3. Super large aperture f/0.9 lens, 19% improvement
With a high-performance aspheric germanium lens, the super large aperture f/0.9 offers better temperature radiation capturing capability. Compared with the f/1.0 aperture, the capturing of temperature radiation level is increased by 19%. The larger the aperture is, the more infrared radiation can be captured, and the image will be much clearer.

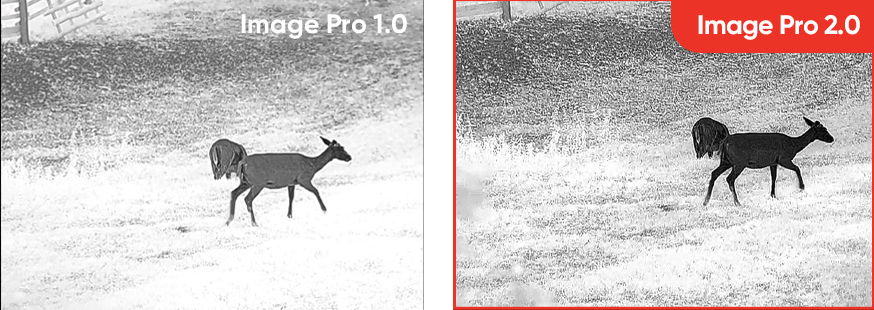

4. Image Pro 2.0, enhanced self-developed image processing algorithm
Image Pro 2.0, HIKMICRO’s self-developed image processing algorithm, ensures the maximum digital image optimization depending on the purposes and conditions of observation and provide high-quality rendering of both target objects and background.
*Only accessible on V5.5.85_240906 version onwards, others remain Image Pro 1.0
Significantly Improved Design. Exceptional Ease-to-use.Â
1. Ergonomic cylindrical shape design for better operation experience
The compact and premium cylindrical shape design offers the perfect operation experience. It allows for one-handed operation,and is also optimized for both left-handed and right-handed users. Besides, the device adopts soft and skin-friendly material for a better hand feel.

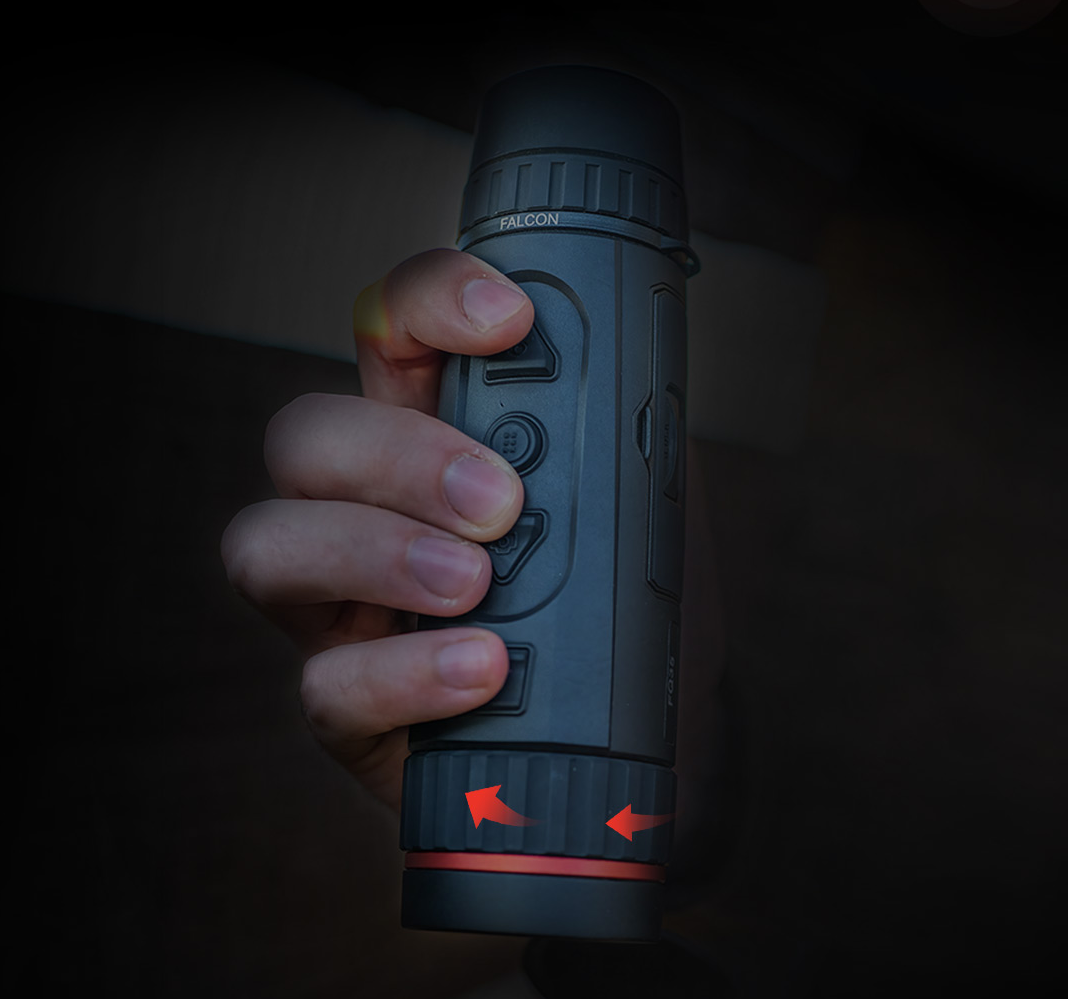

2. Perfect component for intuitive operation
The component design has been greatly improved, which is more in line with the needs of users‘ real use scenarios. The buttons arrangement is very user-friendly and with the different shapes, each function can be identified and controlled intuitively and quickly–even when wearing gloves or under complete darkness.

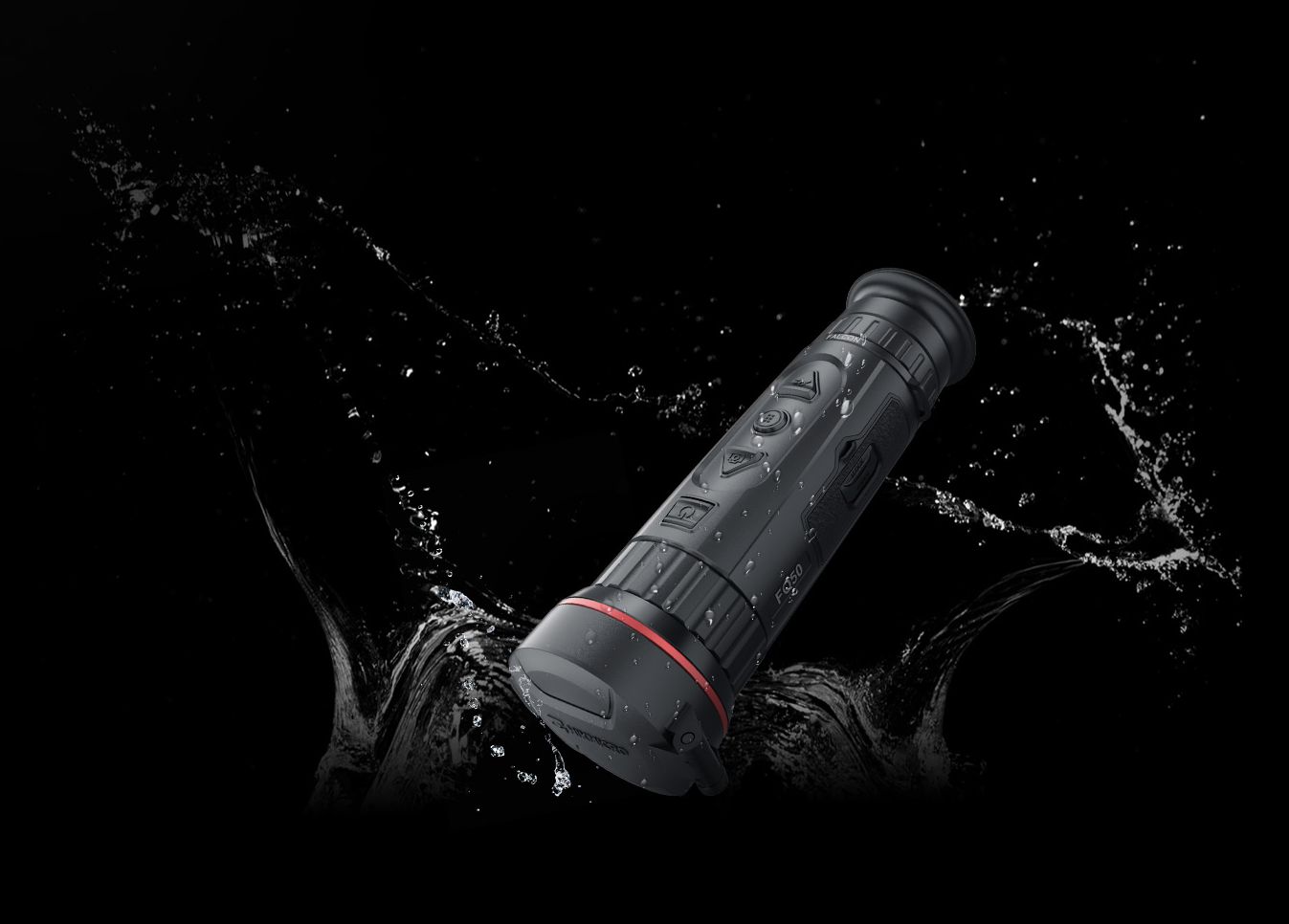

3. Robust magnesium housing and lens coating material for long-time use
The rugged magnesium housing material prevents sweat, rain, mist and dew from corroding. The objective lens adopts SDLC coating technology, which can effectively prevent scratches. With IP67 waterproof-rated, the device can be immersed in up to 1 meter of water for up to 30 minutes.It's perfect for constant and often hard use.
Replaceable and Rechargeable High Capacity Battery, Not-stop Observation
On one battery pack the device can run up to 7 hours. With the convenient replaceable feature, another battery unit can be used as the spare one for non-stop operation. Besides, power banks connected via a Type-C interface can be used as an external power supply.
See Further or Wider. Catch More Details
1. Long detection range up to 2600m and very large field of view up to 22m@100m
Suitable for different observation scenes, giving a considerable advantage when stalking at night over long distances from a raised hide in a field, or providing a perfect overview in wooded area over short distances.
2. Powerful digital zoom, up to 8x
With 8x digital zoom, objects can be reliably identified and recognized at any time, no details remain hidden, even at great distances.
More Advantages
Full Color 1024x768 HD OLED display
Hot tracking mode
Photo/video recorder with 64GB built-in memory
Four color palettes
SPECIFICATIONS
PRODUCT MODEL
 *Check the product for comparison
FH25
FH35
FQ25
FQ35
FQ50
Image Sensor
VOx Uncooled Focal Plane Arrays
VOx Uncooled Focal Plane Arrays
VOx Uncooled Focal Plane Arrays
VOx Uncooled Focal Plane Arrays
VOx Uncooled Focal Plane Arrays
Max. Resolution
384x288
384x288
640x512
640x512
640x512
Frame Rate
50Hz
50Hz
50Hz
50Hz
50Hz
Pixel Interval
12μm
12μm
12μm
12μm
12μm
Response Waveband
8μm to 14μm
8μm to 14μm
8μm to 14μm
8μm to 14μm
8μm to 14μm
NETD
Less than 20 mK (@25°C),F#=1.0
Less than 20 mK (@25°C),F#=1.0
Less than 20 mK (@25°C),F#=1.0
Less than 20 mK (@25°C),F#=1.0
Less than 20 mK (@25°C),F#=1.0
Lens (Focal Length)
25mm, F1.0
35mm, F1.0
25mm, F1.0
35mm, F1.0
50mm, F0.9
Detection Range
1200m
1800m
1200m
1800m
2600m
Focus Mode
Focus Ring
Focus Ring
Focus Ring
Focus Ring
Focus Ring
Field of View(H × V), Degrees / m @100m
10.5°×7.9°/18.4m×13.8m
7.5° × 5.7°/13.1m × 10.0m
17.5° × 14.0° / 30.8m × 24.6m
12.5° × 10.0°/21.9m × 17.5m
8.8° × 7.0°/15.4m × 12.2m
Min. Focusing Distance
2.5m
3.5m
2.5m
3.5m
5.0m
Magnification
2.2×-17.6x (8x)
Support Continuous Zooming
3.0×-24.0x (8x)
Support Continuous Zooming
1.4×-11.2x (8x)
Support Continuous Zooming
1.8×-14.4 (8x)
Support Continuous Zooming
2.6×-20.8x (8x)
Support Continuous Zooming
