CONDOR LRF
Image Quality Exploration. Precise Distance Measurement
Vivid, Informative, and Layered Images
Ultra clear images, impressive detail recognition
Powerful high sensitivity (NETD＜20mK) thermal detector of HIKMICRO CONDOR thermal imaging monocular helps small details of objects and backgrounds to be identified easily and clearly in different weather and light conditions.
HIKMICRO Image Pro 2.0 ensures the maximum digital image optimization and provides high-quality rendering of both target objects and background, especially in the original magnification. (Only accessible on V5.5.85_240810 version onwards, others remain Image Pro 1.0.) HIKMICRO Zoom Pro can help present ultra-clear images with a higher signal-to-noise ratio and impressive details, especially when using digital zoom.
Accurate Distance Measurement
Distance is essential to ensure a correct assessment of the situation. The integrated laser rangefinder in HIKMICRO CONDOR thermal monocular allows the user to measure a distance up to 1,000m with an accuracy of ±1 meter in various scenarios, enjoying the most precise measurement of the situation.

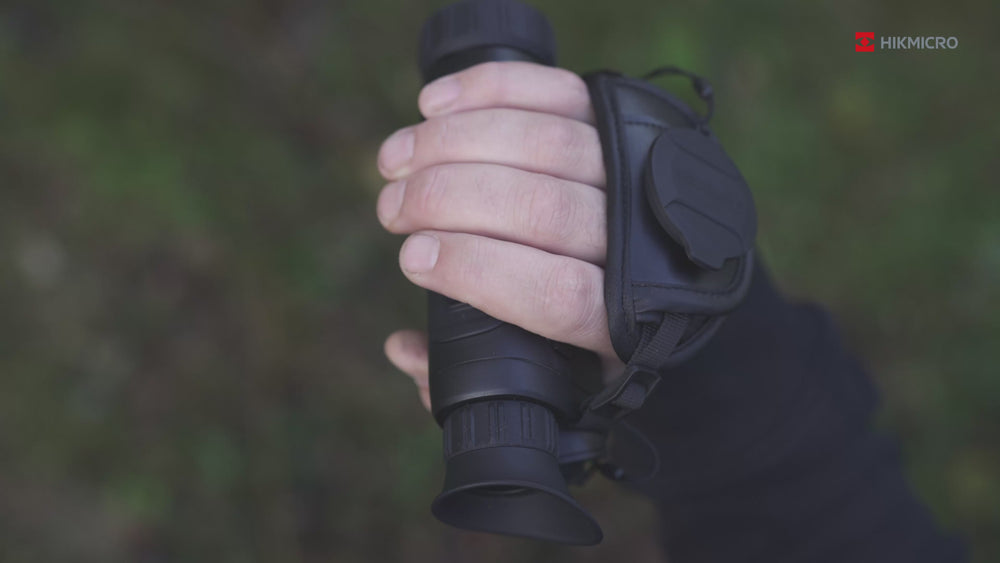

Ergonomic grasping shape design for better operation experience
HIKMICRO CONDOR's compact and easy-grasp shape design perfectly fits human hands' purlicue. It adopts soft and skin-friendly material to guarantee better operation for both left- and right- hand users.
Purpose-Built Features Come For Ease-To-Use
Robust magnesium alloy housing design for long-time use
Magnesium alloy design retains HIKMICRO CONDOR thermal monocular a robust structure with light weight and improves stability to meet long-lasting use under any harsh environmental condition.
Magnetic lens cover, easily take and collect
A loss-proof magnetic lens cover realizes easy and silent installation and collection, ensuring better protection of the HIKMICRO CONDOR SDLC lens.
Fast boot-on function and replaceable batteries bring more lasting use
Fast boot-on within 3s makes the HIKMICRO CONDOR always ready for use
The HIKMICRO CONDOR thermal monocular comes with three replaceable and rechargeable 18650 batteries. Each battery can last for 2 hours of continuous observation with the laser ranging finder on. In total, CONDOR can provide 6 hours of operation, to better capture exciting moments during the game.

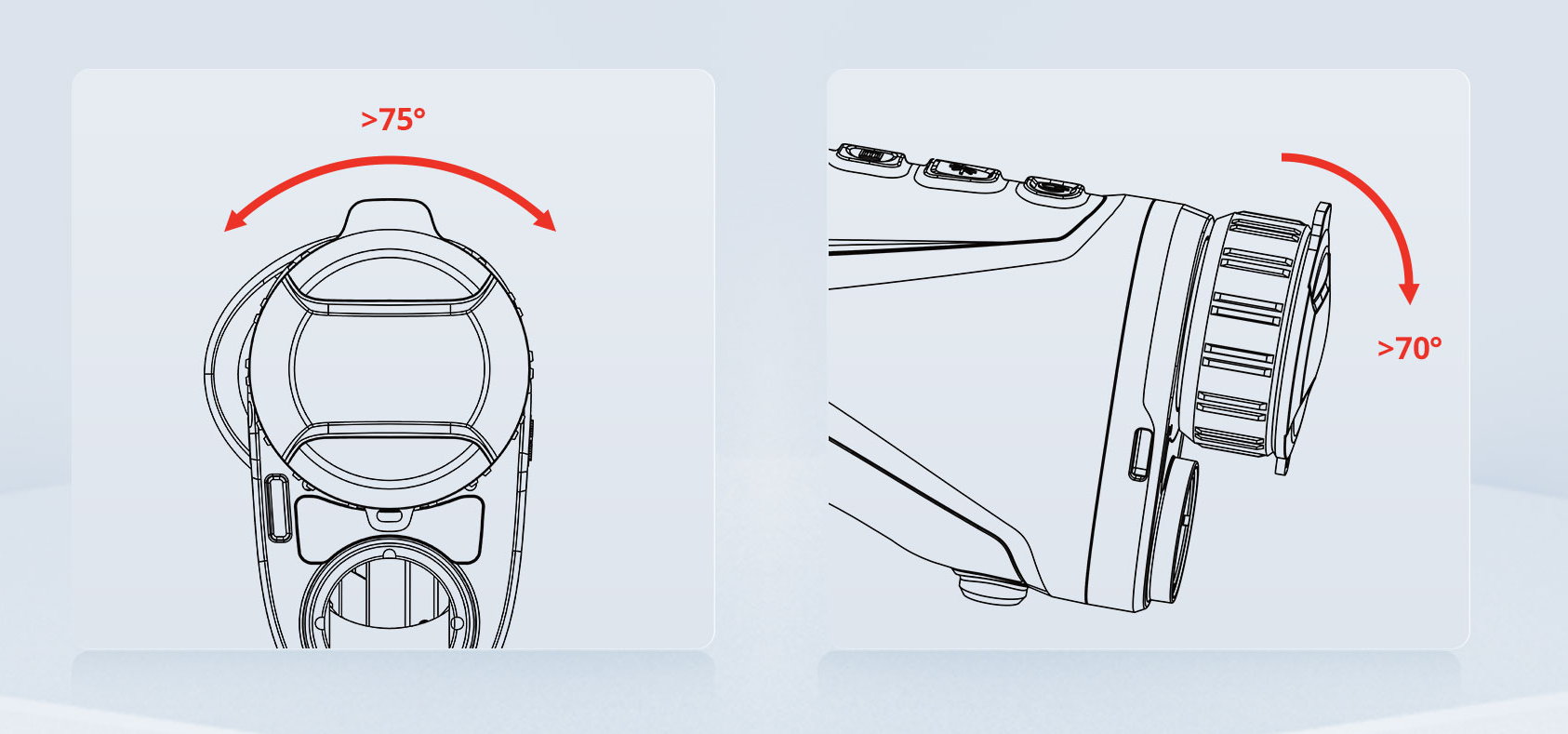

Auto screen off darkens the screen to save energy and increase battery time
The integrated algorithm automatically detects HIKMICRO CONDOR‘s exact position and activates the auto screen-off function when there is no need to use it. HIKMICRO CONDOR will stand by automatically at a lateral tilt of 75°as well as at a downward or upward tilt of 70°.
Personalized settings available to the suitable visual experience
HIKMICRO CONDOR thermal monocular is characterized by the hierarchical menu, prioritizing frequently used functions according to user habits. Users can customize their visual experience to the highest level of comfort by adjusting settings such as contrast, sharpness, and other personalized options.
More Advantages
Integrated hotspot module makes Sight app as a second display
Up to 2600m detection range
-30°C ~+ 55°C operating temperature
Audio and video available
SPECIFICATIONS
PRODUCT MODEL
 *Check the product for comparison
CH25L
CH35L
CQ35L
CQ50L
Image Sensor
VOx Uncooled Focal Plane Arrays
VOx Uncooled Focal Plane Arrays
VOx Uncooled Focal Plane Arrays
VOx Uncooled Focal Plane Arrays
Max. Resolution
384x288
384x288
640x512
640x512
Frame Rate
50Hz
50Hz
50Hz
50Hz
Pixel Interval
12μm
12μm
12μm
12μm
Response Waveband
8μm to 14μm
8μm to 14μm
8μm to 14μm
8μm to 14μm
NETD
Less than 20 mK (@25°C),F#=1.0
Less than 20 mK (@25°C),F#=1.0
Less than 20 mK (@25°C),F#=1.0
Less than 20 mK (@25°C),F#=1.0
Lens (Focal Length)
25mm, f1.0
35mm, f1.0
35mm, f1.0
50mm,f1.0
Detection Range
1200m
1800m
1800m
2600m
Focus Mode
Focus Ring
Focus Ring
Focus Ring
Focus Ring
Field of View(H × V), Degrees / m @100m
10.5° ×7.9°/ 18.3m × 13.8m @ 100m
7.5° x 5.6° / 13.1m x 9.7m@100m
12.5°×10.0°/21.9m×17.5m@100m
8.7° x 7.0°/15.2m x 12.2m@100m
Min. Focusing Distance
2.5m
3.5m
3.5m
5m
Magnification
2.5×-20.0× (8×)
3.5x-28.0x (8x)
2.0×-16.0× (8×)
3.0x-24.0x (8x)
Display
1024×768, 0.39 inch, OLED
1024x768, 0.39 inch, OLED
1024x768, 0.39 inch, OLED
1024x768, 0.39 inch, OLED
Video

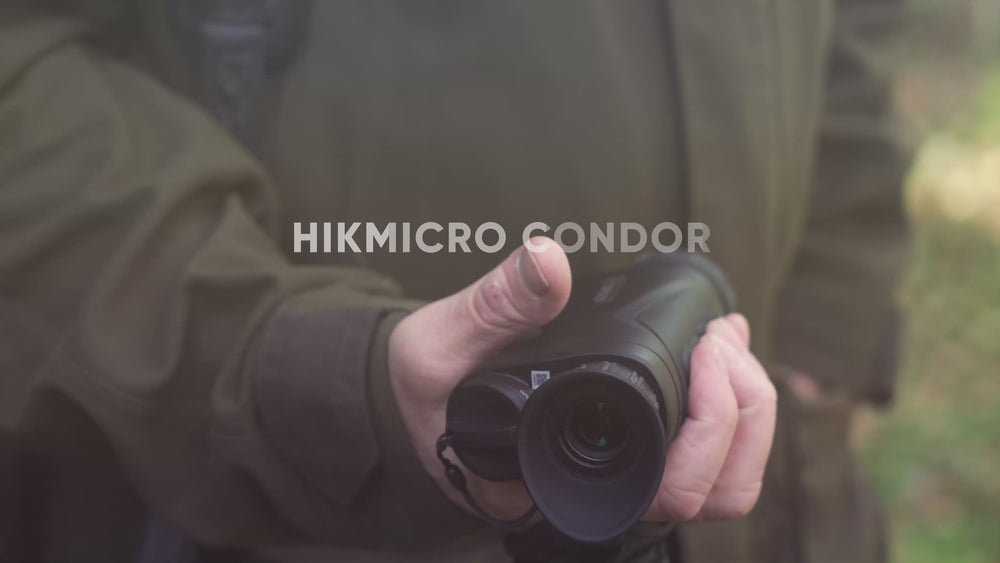

CONDOR INTRODUCTION
OCTOBER, 2023

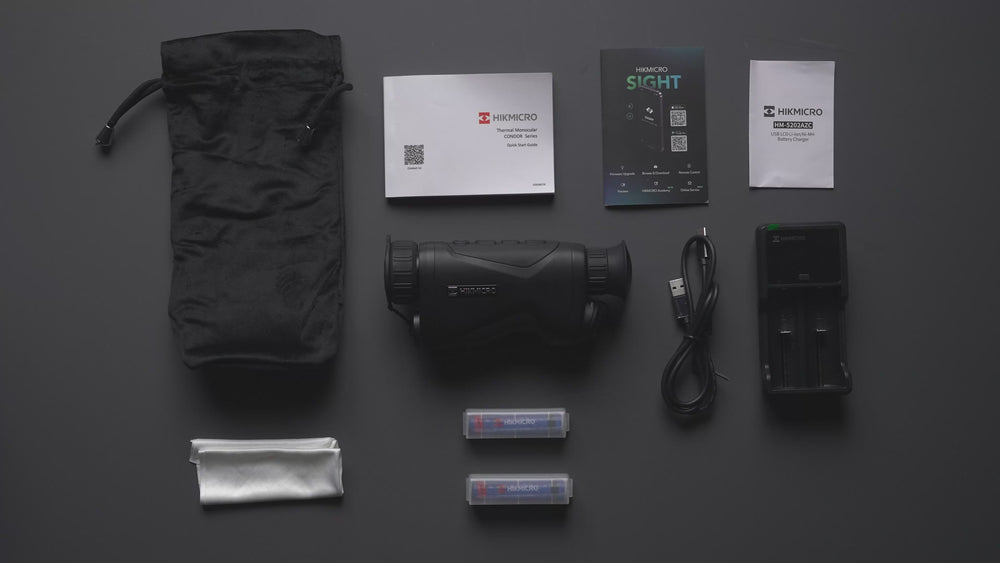

CONDOR UNBOXING
OCTOBER, 2023
CONDOR BUTTON DESCRIPTION
OCTOBER, 2023
